Group Policy Block Inheritance

Group Policy Inheritance for Windows Server 2003

This page introduces all the objects and techniques that you will need to create the best Group Policies for your Active Directory.  In particular, I will shows you how to get the most out of your policies by judicious use of  ‘Enforce’ and ‘Block Inheritance’.


Creating Group Policy Objects (GPO)Group Policy Block Inheritance.

Just to be clear on the semantics, the settings that I discuss in the following pages are held in Group Policy Objects (GPOs).  These policies are created in, or linked to, the container objects at the Site, domain or OU level.

To create your GPO, right-click the OU, select Properties, and then click on the Group Policy Tab. (See Diagram)

Next click ‘Open’ and choose your OU and select: Create and Link a GPO  here.  Now you are ready to edit the Group Policy settings and thus fashion the desktop of your vision.

Group Policy Block Inheritance

Most of the time you need not worry about Group Policy inheritance, because if there is no conflict, then there is no problem.  If ‘Remove Run Command’ is enabled at the domain level, and ‘Add Logoff  to start menu’ is enabled at the OU, there is no fight for control.  It is only when ‘Add Logoff’ is disabled at the OU then we have a conflict with ‘Add Logoff enabled at the domain GPO.

Group Policy Inheritance

  • (Local Policy XP, Windows 7 and Member Servers)
  • Site
  • Domain
  • OU
  • Child OU.

Block Inheritance

There is one setting that you should know more about and that is Block Inheritance.  This is what I call the anarchists setting.  If you allow delegation at the OU, level then it is possible to stop any policies coming down from the domain.  However any policies that have been ‘Enforced’, cannot be blocked.

Normally all GPOs are applied and settings configured are cumulative as you go down the directory tree.  Where settings contradict, the last writer wins.  Now there may be situations you don’t want that behaviour.  This is where Block Inheritance comes into play, for you to regain control of your vision or master plan for users’ settings.

Remember that if you impliment Group Policy’s block inheritance it affects the whole OU, not just one policy.

Enforced (Also known as No-Override)

Surprisingly, by default, the settings at the lowest level win.  What ever is set at the child OU will override the same policy setting at the domain level.  If you are thinking, ‘That cannot be right; that is not what I intended’, then I have just the option for you: ‘Enforced’.  If enforced is set on a GPO at a higher level then the child objects and the sub, sub OUs cannot override that policy.

Guy Recommends: Permissions Analyzer – Free Active Directory ToolFree Permissions Analyzer for Active Directory

I like thePermissions Monitor because it enables me to see quickly WHO has permissions to do WHAT.  When you launch this tool it analyzes a users effective NTFS permissions for a specific file or folder, takes into account network share access, then displays the results in a nifty desktop dashboard!

Think of all the frustration that this free utility saves when you are troubleshooting authorization problems for users access to a resource.  Give this permissions monitor a try – it’s free!

Download Permissions Analyser – Free Active Directory Tool

Group Policy LinksGroup Policy Link - How and where to create

Another option is to Link an Existing GPO. otherwise known as : ‘The one I made earlier’.  This concept involves recycling policies that you designed for other OUs.  Apart from not re-inventing the wheel, the benefit is that the links themselves have permissions.

Group Policy Security – ‘Filtering’

As you design your policies, keep in mind for whom they are intended.  For instance, is a policy needed for all users or just for one department?   Microsoft calls controlling who gets particular settings as  ‘Policy Filtering’, Guy calls it adjusting the security tab.

Group Policy, Delegation Advanced Deny PermissionsWhen you are new to Group Policies it is tempting to experiment with viscous settings to lockdown the user.  The problem arises, if you apply a high security policy at the domain level, and then you forget that affects even the administrator.  You only shoot yourself in the foot once, thereafter, you remember to filter the policy so that only the intended users get your vicious settings.

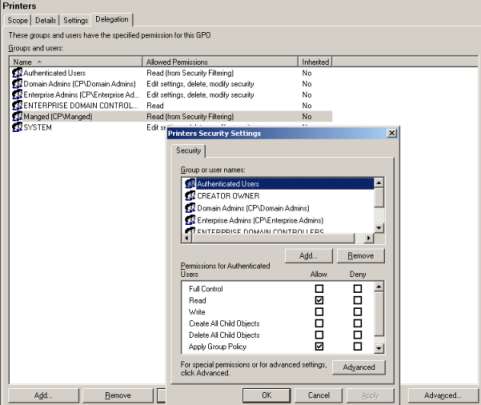

There are two philosophies for filtering policies, either rip out the Authenticated users and just add the group you have in mind for that policy; alternatively, deny the policy to Administrators, so they will not be ‘under the thumb’ of an aggressive lockdown policy.  If you wish to edit permissions, navigate to the menu above.  Note the Delegation tab and in particular the Advanced button on the bottom right.

Group Policy Creator Owners

What’s new with delegation of permissions?  In Windows 2003 there is a new built-in global group called Group Policy Creator Owners.  My own view is that I would confine configuring Group policies to a small select group of experts and not allow delegation of Group Policies to people in each OU.  My point is that while I am usually all for delegation, creating users – yes, reset passwords – excellent use of delegation, but in the case of delegate Group Policies – no.  Leave Group Policies to your top administrator team.

Guy Recommends: SolarWinds Free Network Bandwidth MonitorFree Real-Time Bandwidth Monitor

This freeware monitor is great for checking whether your network’s load-balancing is performing as expected, for example, are two interfaces are getting about equal traffic?

It’s easy to install and straightforward to configure. You will soon be running tests to see how much network bandwidth your applications consume.

The GUI has a lovely balance between immediate network traffic data in the middle, combined with buttons to seek related data and configuration settings. Give this monitor a try, it’s free!

Download your free network bandwidth monitor

If you need more comprehensive network analysis software:
Download a free trial of NPM (Network Performance Monitor)

Group Policy Receptacle

Group Policy objects have to be created and held in a receptacle.  This receptacle could be at the domain, OU or site level.  Do remember that Windows 2003 comes with two default Group Policies, one for the domain Group and another for the Domain Controllers.  Also remember that the yellow folders called Users and Computers are container objects and not OUs.  This is not a trivial difference because containers cannot be assigned Group Policies whereas OUs can.  At some point in your Group Policy project you will focus on OUs, so it is best to review your OUs before you create lots of Group Polices.

Sooner or later everyone forgets that the domain level is the one and only level that you can set domain account policies, for example password length, lockout duration.  It is also easy to overlook the Domain Controller Group Policy when you are configuring local settings for those particular servers.

A good reason to create more policies is because you want each department to experience independent desktop settings.  The container for these diverse policies is the OU (organizational unit).  It is also possible to set policies at the site level, but I would discourage this except for the largest companies.  My reasoning is that troubleshooting policies in two locations is challenging enough, so you do not need the extra difficulties caused by a policy at the site level which you had forgotten about.  Moreover, setting policies at the site level would affect all the domains in that site.

A neglected area of OUs and Group Policies is servers.  Why not create separate OUs for your servers, workstations and laptops?  The benefit is that you will focus on the Computer Configuration policies for these machines.

Summary, make the domain and OU objects your vehicles for Group Policies.  If possible, avoid using Site or Local Group policies.

Engineer's Toolset v10Guy Recommends: SolarWinds Engineer’s Toolset v10

This Engineer’s Toolset v10 provides a comprehensive console of 50 utilities for troubleshooting computer problems.  Guy says it helps me monitor what’s occurring on the network, and each tool teaches me more about how the underlying system operates.

There are so many good gadgets; it’s like having free rein of a sweetshop.  Thankfully the utilities are displayed logically: monitoring, network discovery, diagnostic, and Cisco tools.  Try the SolarWinds Engineer’s Toolset now!

Download your fully functional trial copy of the Engineer’s Toolset v10

Summary of Group Policy Block Inheritance

This page shows techniques to create the best Group Policies for your Active Directory.  In particular, I you can see how to fine-tune  your policies by judicious use of  ‘Enforce’ and ‘Block Inheritance’.

See Group Policies in Windows 8.

Group Policy ebook Windows 2003Download my ‘Master Group Policies’ ebook only $6.25

The extra features you get in your eBook include: Spreadsheet with over 850 policies.  Printer friendly version over Word A4 pages in Word.

See more Group Policies for Windows Users
