BitLocker provides extra security for computer disks, especially those of laptops. It works because the drive remains encrypted, even if the disk is transferred to another machine. Without the encryption
keys, thieves cannot interrogate the disk by installing a parallel copy of Vista, or any other operating system.
Topics for Windows Vista BitLocker Drive Encryption
Buy Windows Vista Ultimate, because this is the only edition that supports BitLocker.
Check that the Vista computer has a modern BIOS which supports TPM (Trusted Platform Module). This ensures that the disk is encrypted at startup. Consequently, if the disk were stolen and removed to a different computer, the thief
would need the recovery keys before they could read the data.
As ever, planning is the key. The best solution is to create the two partitions, need by BitLocker, during install. For this task, seek out detailed instructions,
particularly learn how Diskpart creates and formats the BitLocker partition. Meanwhile, here are outline instructions for the task.
As you install Vista, create at least two partitions,
one for the operating system one for the encrypted data. The secret is to click on 'System Recovery Options'. As you install Vista Ultimate, look at the lower left of the pages, System Recovery Options appears on about the
second install screen, just after you select the Keyboard Layout
If you have already installed Vista, but without this configuration, don't despair, seek out the Windows BitLocker Drive Preparation Tool.
Assuming that Vista boots and you logon, this is where you find the BitLocker Drive Encryption configuration
settings: Control
Panel, Security, BitLocker Drive Encryption, now click: 'Turn On BitLocker on the operating system volume'.
If your TPM (Trusted Platform Module) is not initialized, then the wizard will guide you through the initialization process.
Pay
careful attention to the 'Save
the recovery password' page, your options include:Save the password on a USB drive.Save the password in a folder. Print the password.
You should now be on the page: 'Encrypt the selected disk
volume'. Confirm that the 'Run BitLocker System' check box is selected.
You should now see the status bar. To monitor the progress of your disk volume encryption, drag your mouse
over the icon in the tool bar. (It's at the bottom of your screen.)

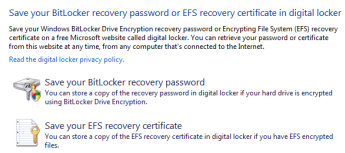

The idea is to use Secure Online Key Backup to protect both BitLocker's recovery password, and your recovery certificate for the Encrypting File System. I like the idea of backing up important files to
storage areas in the internet. SOKB takes this concept one stage further by connecting to a secure Microsoft Web site called Digital Locker.
The benefit is if you lost these keys and certificate, you could download them from Microsoft's secure Digital Locker site.
Guy Recommends: A Free Trial of the Network Performance Monitor
(NPM)
SolarWinds'
Orion performance monitor
will help you discover what's happening on your network. This
utility will also guide you through troubleshooting; the dashboard will
indicate whether the root cause is a broken link, faulty equipment or
resource overload.
What I like best is the way NPM suggests solutions to network
problems. Its
also has the ability to monitor the health of individual VMware
virtual machines. If you are interested in troubleshooting, and creating
network maps, then I recommend that you try NPM now.
In addition to BitLocker's
secruity,
Microsoft has enhanced EFS (Encrypted File System) in the Ultimate, Business and Enterprise Vista Editions. For example, you now have the ability to encrypt the page file and recovery keys onto smartcards.
Thanks to Vista Service
Pack 1 (SP1), there are enhancements to the BitLocker
feature and also Microsoft made available three new tools for its management and
repair.
Though BitLocker can be used with or without a Trusted Platform Module
(TPM) chip, TPM offers an additional level of security and is the
preferred way to use BitLocker in Vista or Windows Server 2008.
In our scenario, we'll assume that you have a Vista laptop with a TPM
chip installed on the motherboard. In order to get BitLocker working,
you'll first need to configure the TPM settings in the laptop's BIOS,
and then configure BitLocker in the OS.
TPM is a microchip that supports several
advanced security features, such as storing encryption keys, digital
certificates and passwords. The BitLocker feature in Vista works with
the TPM chip. Depending on your BIOS and manufacturer, TPM Security may
be set to OFF in the BIOS by default, meaning TPM can't be used. More specifically, there were two settings for
TPM in the BIOS on my computer -- TPM Security and TPM Activation -- and
they were both turned off by default.
Enabling TPM Security is very simple: Go into BIOS and set it to ON.
To turn on TPM Activation, you first need to set TPM Security to ON,
save the changes in the BIOS setup, reboot the computer, and then
return to the BIOS setup to activate TPM.
Once this is done, you're ready to configure BitLocker in the OS.
BitLocker OS Requirements
Before you get started, make sure that your computer meets the
minimum system requirements for BitLocker
You need two partitions, one for the system volume (e.g., Drive D) and one
for the OS volume (e.g., Drive C). * The system partition (Drive D) is
unencrypted and the OS volume (Drive C) is encrypted. * The system
partition (Drive D) is at least 1.5GB and is set as the active
partition.
As a result of the above
BitLocker procedures, you can encrypted the operating system volume and create a recovery password.
However, the only time that you notice the BitLocker Drive Encryption, is if there are changes to key system files, or if someone tries to start the computer from a disk. In this instance you will see the recovery mode
interface -
waiting for a password.
